sedak isotherm: low-e insulating glass

sedak isotherm: a low-e insulating glass for a cozy interior

Today, low-e insulating glass units are indispensable for energy-efficient construction. Our sedak isotherm range satisfies the highest insulating and quality requirements. sedak isotherm glass relies on a neutral coating, with currently required Ug-values, to achieve effective thermal insulation.

As double or multiple glazing units with virtually invisible finish treatments, sedak isotherm glass is hardly distinguishable from conventional insulating glass. The benefits of this glass are: good color rendering, high light transmittance, and optimum thermal insulation.

Overview production capabilities.pdf

Broschure insulating glass line

type of coating neutral E neutral E 3 E
product name sedak iso neutral E double sedak iso neutral E double sedak iso neutral E triple
glass makeup (ext/cavity/mid/cavity/int) (mm) 4/16/:4 6/16/:6 6/12/6/12/:6
nominal Ug-value EN 673 1,1 1,1 1,0
g-value (%) 63 61 54
light transmittance (%) 80 78 70
general color rendering index for view through 97 96 94
thickness (mm / Inch) 24 / 0.95 28 / 1.06 36 / 1.42
weight (kg / lb) 20 / 44 30 / 60 30 / 66

application examples

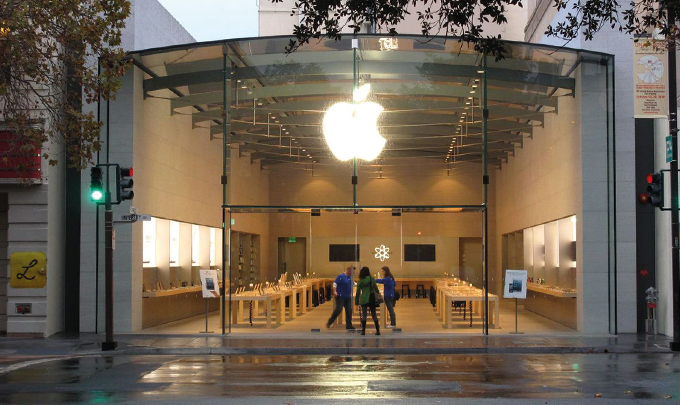

Apple Store Palo Alto
Apple Store Palo Alto
Bohlin Cywinski Jackson

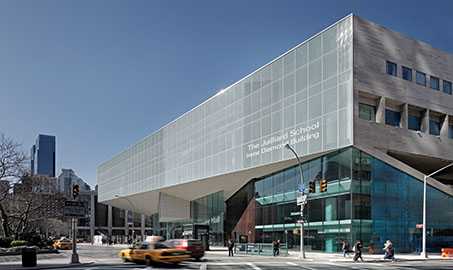

Alice Tully Hall
Alice Tully Hall
Diller Scoido + Renfro LLC.
