sedak isosun: solar control insulating glass

sedak insulating glass

big and economical up to 15m

› Products › sedak insulating glass › sedak isosun

sedak isosun®: solar control insulating glass always remains cool


sedak isosun® is the efficient solar control insulating glass line from sedak. sedak isosun® reliably protects against glare and solar heat gains via its highly efficient combination coating.

Even in instances of large areas of glass, the sedak isosun® insulating glass, with its integral solar control coating, prevents overheating or overcooling of buildings - without restricting the amount of incoming daylight.

Overview production capabilities

Broschure insulating glass line

further links
sedak isosun® - solar-control insulating glass
sedak isosun®:
heat-strengthened or fully tempered
2 to 4-ply insulating glass; multiple on request
combined coating (solar control/low-e) on side 2
available up to 3,6m x 20m
solar control and low-e coating possible
up to 3.21 x 19.45m

product inquiry




  • sedak isosun® shine
  • sedak isosun® neutral
  • sedak isosun® ultraselect
  • sedak isosun® bright
sedak isosun® shine
type of coating shine 40/22 shine 40/22
product name sedak isosun® shine 40/22 sedak isosun® shine 40/22
glass makeup 6/16/4 8/16/6
nominal Ug-value, EN 673 1,1 1,1
g-value (%) 22 22
light transmittance 40 40
LR-value ext. 16 16
LR-value int. 12 12
absorption ext. 53 55
absorption int.   1
selectivity 1,81 1,81
shading Coefficient (g-value EN 410/0.80) 0,28 0,28
shading Coefficient (Solar Factor NFRC/0.87) 0,25 0,25
shading Coefficient (Solar Factor NFRC/0.80) 0,24 0,24
thickness (mm / inch) 26 / 1.02 30 / 1.18
weight (kg / lb) 25 / 55 35 / 77

sedak isosun® neutral

type of coating neutral 50/27 neutral 50/27 neutral 69/37 neutral 69/37 neutral 70/39 neutral 70/39 neutral 73/42 neutral 73/42
product name sedak isosun® neutral 50/27 sedak isosun® neutral 50/27 sedak isosun® neutral 69/37 sedak isosun® neutral 69/37 sedak isosun® neutral 70/39 sedak isosun® neutral 70/39 sedak isosun® neutral 73/42 sedak isosun® neutral 73/42
glass makeup 6/16/4 8/16/6 6/16/4 8/16/6 6/16/4 8/16/6 6/16/4 8/16/6
nominal Ug-value, EN 673 1,1 1,1 1,0 1 1 1 1,1 1,1
g-value (%) 27 27 37 36 39 38 42 41
light transmittance 50 50 69 68 70 69 73 72
LR-value ext. 9 9 12 12 12 12 10 10
LR-value int. 11 11 13 13 13 13 12 11
absorption ext. 48 50 31 35 33 36 32 36
absorption int.   1 1 1 1 1 1 1
selectivity 1,85 1,81 1,84 1,83 1,79 1,79 1,74 1,73
shading coefficient (g-value EN 410/0.80) 0,34 0,34 0,46 0,45 0,49 0,48 0,53 0,51
shading coefficient (solar factor NFRC/0.87) 0,31 0,31 0,43 0,41 0,45 0,44 0,48 0,47
shading coefficient (solar factor NFRC/0.80) 0,29 0,29 0,39 0,38 0,41 0,4 0,45 0,44
thickness (mm / inch) 26 / 1.02 30 / 1.18 26 / 1.02 30 / 1.18 26 / 1.02 30 / 1.18 26 / 1.02 30 / 1.18
weight (kg / lb) 25 / 55 35 / 77 25 / 55 35 / 77 25 / 55 35 / 77 25 / 55 35 / 77

sedak isosun® ultraselect

Tabelle
type of coating ultraselect 62/29
product name sedak isosun® ultraselect 62/29
glass makeup 6:/16/4
nominal Ug-value, EN 673 1.0
g-value (%) 29
light transmittance 62
LR-value ext. 10
LR-value int. 11
shading coefficient (g-Value EN 410/0.80) 0.36
thickness (mm/inch) 26/1.02
weight (kg/lbs) 25/55
sedak isosun® bright
type of coating bright bright
product name sedak isosun® bright sedak isosun® bright
glass makeup 6:/16/4 8:/16/6
Ug-Nennwert EN 673 2.6 2.6
g-Wert (%) 60 57
light transmittance (%) 59 58
LR-value ext. 36 35
LR-value int. 38 37
absorption ext. 15 19
absorption int. 2 3
selectivity 0.98 1.01
shading coefficient (g-value EN 410/0.80) 0.75 0.71
shading coefficient (solar factor NFRC/0.87) 0.57 0.57
shading coefficient (solar factor NFRC/0.80) 0.56 0.55
thickness (mm / inch) 26 / 1.02 30 / 1.18
weight (kg / lb) 25 / 55 35 / 77



application examples

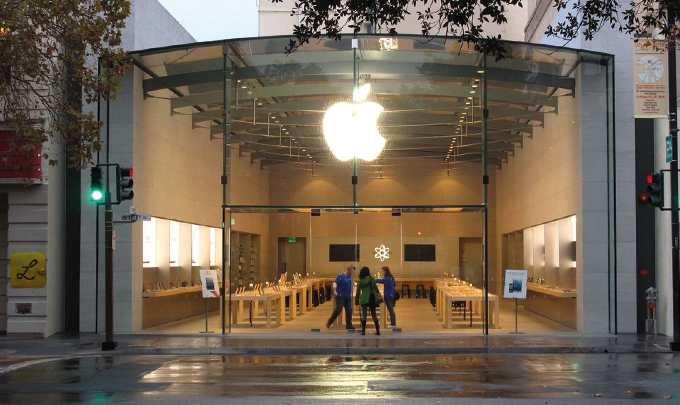

Apple Store Palo Alto
Apple Store Palo Alto
Bohlin Cywinski Jackson
Bauzeit 2007

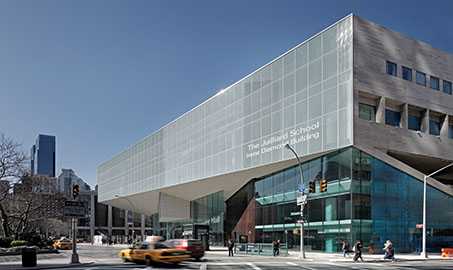

Alice Tully Hall
Alice Tully Hall
Diller Scoido + Renfro LLC.
Bauzeit 2009
