insulating glass with functional diversity

sedak isosecure®: insulating glass for special requirements

clients choose sedak isosecure® whenever glazing not only has to protect against light, noise, and heat, but also hazards. sedak isosecure®, with laminated safety glass, provides shatterproof protection up to bullet resistance br7.

sedak isosecure® unites bullet-resistant protection and high performance in a modern insulating glass. The ingenious pane structure means a conventional polycarbonate system is no longer needed – both outer panes are made of glass:

– the high aesthetic appeal of the transparent material is maintained
– scratch resistance: makes glass easier to handle and clean
– better fire safety rating
– available as float and heat-strengthened glass

This innovative insulating glass can be combined with standard solar control and heat insulation layers, thus complying with modern energy standard requirements.

sedak isosecure® is certified for float and heat-strengthened glass and is suitable for glass façades on challenging buildings with a high level of protection. It provides shatterproof protection up to a level of bullet resistance BR7 as per EN 1063.

The innovative bullet-resistant glass structure is available as flat or curved insulated glass up to 3.6m x 20m.

Insulating glass thicknesses for sedak isosecure® - flat
– BR3 NS: 99 kg / sqm, thickness1 57 mm
– BR4 NS: 115 kg / sqm, thickness1 64 mm
– BR5 NS: 131 kg / sqm, thickness1 71 mm
– BR6 NS: 150 kg / sqm, thickness1 79 mm
– BR7 NS: 200 kg / sqm, thickness1 100 mm

Insulating glass thicknesses for sedak isosecure® - curved
– BR4 NS: 115 kg / sqm, thickness1 64 mm
– BR6 NS: 150 kg / sqm, thickness1 79 mm
– BR7 NS: 200 kg / sqm, thickness1 100 mm
– Radius: from 1 m to ∞

These specifications apply to certified standard structures.
Thicker structures needed for structural reasons, for example,
may require a new ballistic test.

1 including spacer

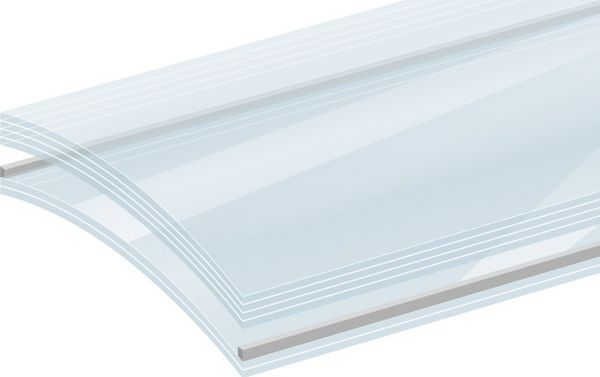

Example structure
